| Tempat asal: | Cina |
| Nama merek: | SURPLUS LIGHTING |
| Sertifikasi: | TUV CB CE RoHS SAA |
| Nomor model: | SL-ST60WXXSSG |
| Kuantitas min Order: | 1 PCS |
|---|---|
| Harga: | 1-100 USD/unit |
| Kemasan rincian: | kemasan standar atau menyesuaikan |
| Waktu pengiriman: | 10-18 hari kerja |
| Syarat-syarat pembayaran: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Menyediakan kemampuan: | 80000pcs per bulan |
| Power: | 60W | Efficiency: | 200lm/W |
|---|---|---|---|
| Driver: | MOSO / SOSEN / INVENTRONICS | PF: | ≥0.98 |
| IP rating: | IP66 | IK rating: | IK08 |
| IES: | Type II (S/M), Type III (S/M) | Warranty: | 5/7/10 years |
| Surge protection: | 10KV / 20KV | Dimmable: | 0-10V, PWM, Timer dimming / DALI dimming |
| Menyoroti: | 277V LED Street Light,200LM/W Street Light,DALI Dimming LED Street Light |
||

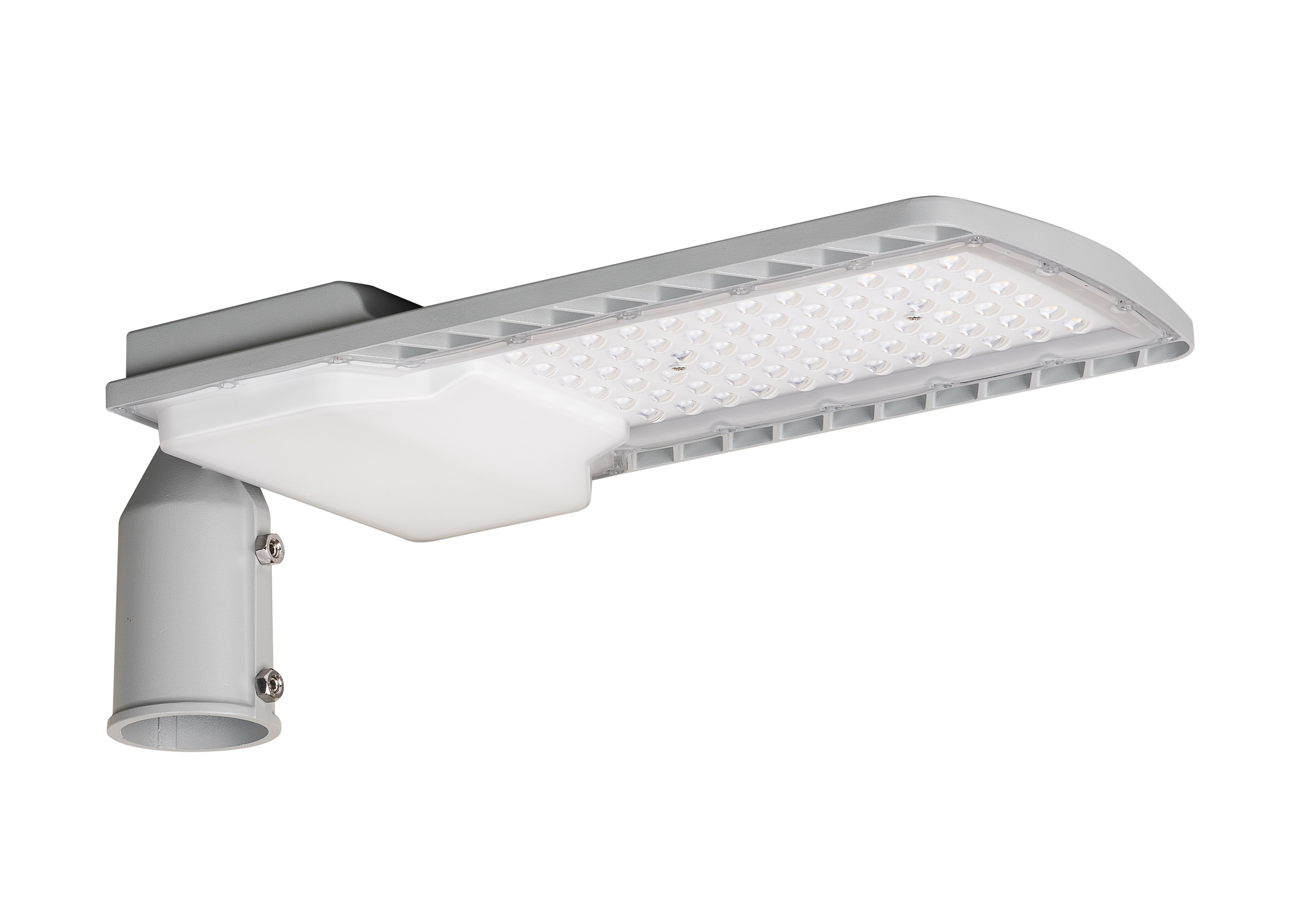

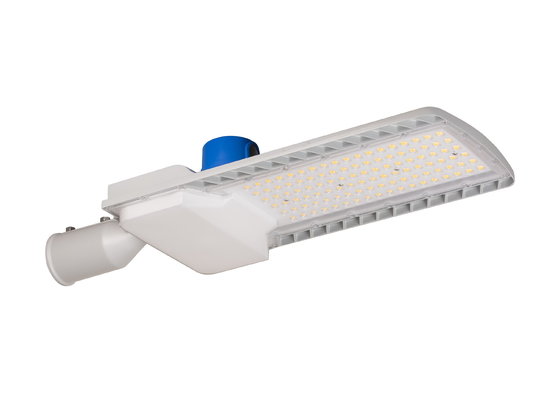

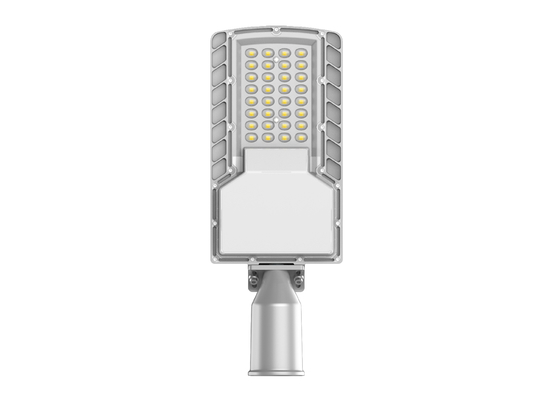

Kelas I Star Series 200lm/W lampu jalan LED 0-10V, PWM, Timer dimming / DALI dimming lampu jalanLembar data
| Kode produk |
SL-ST30Wxx SSG |
SL-ST50Wxx SSG |
SL-ST60Wxx SSG |
SL-ST80Wxx SSG |
SL-ST100Wxx SSG |
SL-ST120Wxx SSG |
SL-ST150Wxx SSG |
SL-ST180Wxx SSG |
SL-ST200Wxx SSG |
SL-ST240Wxx SSG |
| Kekuatan | 30W | 50W | 60W | 80W | 100W | 120W | 150W | 180W | 200W | 240W |
| Efisiensi Cahaya | 200lm/W | |||||||||
| Tegangan Masuk | AC100-277V | |||||||||
| Merek chip | TYF5050 / GUANGYOU 5050 (Lumileds LUXEON 5050 opsional) | |||||||||
| Merek pengemudi | INVENTRONICS / SOSEN / MOSO (DALI atau 0-10V dimming opsional) | |||||||||
| Perlindungan terhadap Tombak | Dukungan SPD terintegrasi 10KV/20KV | |||||||||
| Kode Ral | RAL9006 | |||||||||
| CRI | > 70Ra | |||||||||
| CCT | 2700K-6500K | |||||||||
| PF | > 0.98 | |||||||||
| Sudut balok | Tipe II (S/M/L), Tipe III (S/M) | |||||||||
| Bahan | ADC12, anti UV IK10 lensa optik PC | |||||||||
| Jangka Hidup | ¥ 120.000 jam | |||||||||
| Kelas IP | IP66 | |||||||||
| Operasi Tem. | -40 ~ 50 °C | |||||||||
| THD | < 15% | |||||||||
