| Tempat asal: | Cina |
| Nama merek: | SURPLUS LIGHTING |
| Sertifikasi: | TUV ENEC ENEC PLUS+ CB CE RoHS SAA SASO |
| Nomor model: | SL-ST100WxxE4SGH2 |
| Kuantitas min Order: | 1 buah |
|---|---|
| Harga: | 1-100 USD/unit |
| Kemasan rincian: | Kemasan Standar atau Disesuaikan |
| Waktu pengiriman: | 10-18 hari kerja |
| Syarat-syarat pembayaran: | L/C, D/A, D/P, T/T, Western Union |
| Menyediakan kemampuan: | 60000PCS per bulan |
| Kekuatan: | 100W | Efisiensi: | 195LM/W |
|---|---|---|---|
| Merek Pengemudi: | Sosen | hal: | ≥0,95 |
| Peringkat IP: | IP66 | peringkat IK: | IK08 |
| IES: | Tipe II S, II M, III S, III M | Jaminan: | 5/7/10 tahun |
| Perlindungan lonjakan arus: | 10KV / 20KV | Protokol pengemudi: | DALI |

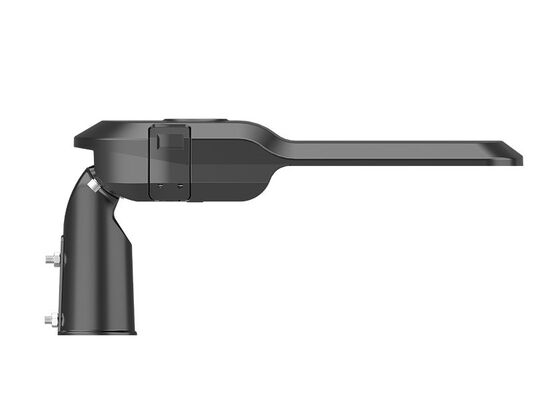

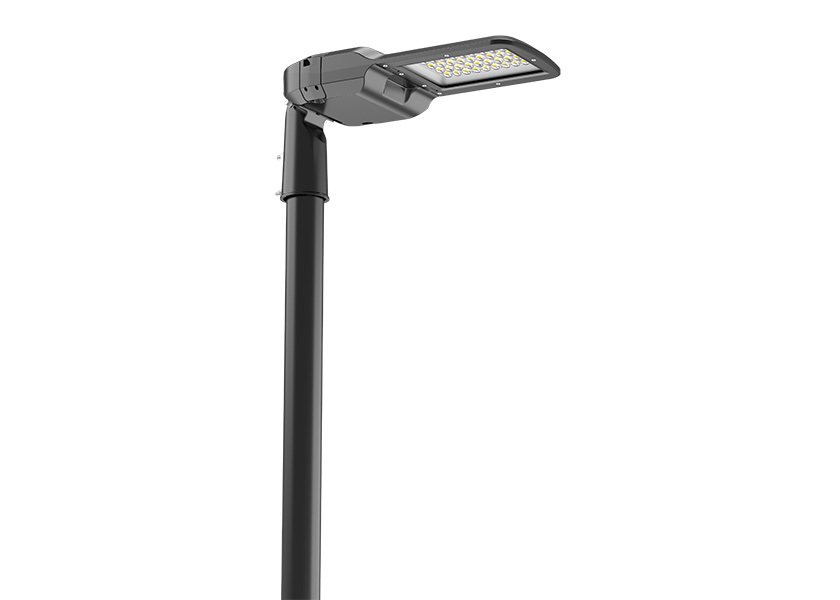

Class II Eagle Gen4 195lm/W LED Street Light Datasheet
| Product Code |
SL-ST30Wxx E4SGH2 |
SL-ST50Wxx E4SGH2 |
SL-ST60Wxx E4SGH2 |
SL-ST80Wxx E4SGH2 |
SL-ST100Wxx E4SGH2 |
SL-ST120Wxx E4SGH2 |
SL-ST150Wxx E4SGH2 |
SL-ST180Wxx E4SGH2 |
SL-ST200Wxx E4SGH2 |
SL-ST250Wxx E4SGH2 |
| Power | 30W | 50W | 60W | 80W | 100W | 120W | 150W | 180W | 200W | 250W |
| Luminous Efficacy | 195lm/W | |||||||||
| Input Voltage | AC180-277V | |||||||||
| Chip Brand | TYF5050 high power LED chips | |||||||||
| Driver Brand | SOSEN DALI-2 | |||||||||
| Surge Protection | Support built-in 10KV/20KV SPD | |||||||||
| Ral code | RAL 9005 matt black
(other colours on request)
|
|||||||||
| CRI | >70Ra | |||||||||
| CCT | 4000K
(available: 2700-6500K)
|
|||||||||
| PF | >0.95 | |||||||||
| Beam Angle | Type II S, Type II M, Type III M, Type III S | |||||||||
| Material | High-pressure die-cast aluminum, anti-uv optical PC lens, IK08 tempered glass | |||||||||
| Life Span | 120,000 hours (L70, TUV TM21 report) | |||||||||
| L90B10 | 100,000 hours | |||||||||
| IP Grade | IP66 | |||||||||
| Operating Tem. | -40~50°C | |||||||||
Products Features of Class II ENEC ENEC+ CB CE RoHS SAA Certified Smart City Lighting Eagle Gen4 LED street light IP66 IK08 Rated
Zhaga-D4i luminaires, tested for compliance against Zhaga specifications,provide with Zhaga-D4i certificate.
Smart lighting system, DALI-2 / AC dim / Timer dimming.
With 5/7 PIN NEMA socket
TUV ENEC, ENEC+, CB, SAA, GMA, CE, RETILAP, INMETRO, RoHS certified.
Smart and morden design, tool-free maintenance, the minimalist design puts the focus squarely on the product itself and the buckle design on the cover of the lamp enables you to open the luminaires without tools.
Self-cleaning design, excellent heat dissipation design, sleek appearance design decreases the dust falling on the fixture.
Power-off automatically, built-in power-off protection device, luminaires will automatically and immediately cut off the power when the luminaries opened, to ensure safety maintenance.
System lumens output up to 195lm/W, powered by TYF 5050 LED, high efficacy and superior robustness in a multi-die, high power package, enabling cost-effective system design.
Provide 5/7/10 year warranty, provide standard 5 year warranty, optional 7/10 year warranty for the luminaires.
A variety of drivers are available, such as SOSEN, MOSO, INVENTRONICS,UPOWERTEK, MEAN WELL, TRIDONIC.
Anti-ultraviolet radiation optical PC lens (PMMA lens optional)
Anti-ultraviolet radiation PC optical lens with high light transmittance and secondary light dissipation technology, optional light distribution curve, available with optics Type II (S/M), Type III (S/M)
No light pollution for residential areas.
Support built-in 10KV / 20KV /40KV SPD (surge protection device), extends the lifetime of the product while protecting the driver and the luminaires from thunder too.
Adjustable bracket 0°-90°, adjustable bracket for horizontal or vertical installation.
High product reliability by applying 13 steps painting process, high efficiency coating. Paint and metal parts successfully passed the 500 hours salt spray test.
Optional C5-M marine grade finishing painting, chromic treatment for the housing, approved by TUV C5-M report, TUV 720 hours neutral salt spray test + 480 hours water condensation test.
Eagle Gen4 LED street light compatible with Software Management System
Web-based management platform, run on AWS/Alibaba cloud server, remotely turn lights on/off, dimming in real-time or preset time; record of power, voltage, current; local strategy, fault alarm, group control and more functions.
